sgrCriarAEv4

Generates the Shipment Authorization (national).

PARAMETERS:

Field	Type	Req.	Description
keyaccess	string	Yes	Key returned by the sgrLogin method.
cdpas	integer	Yes	PAS code, returned by the sgrListPASUser method
cdclienteopentech	integer	Yes	Customer code, returned by the sgrListaEmpresasUsuario method.
nrplacacavalo	string	Yes	Horse license plate.
nrplacacarreta1	string	No	License plate of the first trailer. Send '' (blank) when there is none.
nrplacacarreta2	string	No	License plate of the second trailer. Send '' (blank) when there isn't one.
nrdocmotorista1	string	Yes	Document number of the first driver.
nrdocmotorist2	string	No	Document number of the second driver. Send '' (blank) when the information does not exist.
dtprevini	string	Yes	Estimated date and time for the start of the trip. Send the date in “YYYY-MM-DD HH:MM” format.
dtprevfim	string	Yes	Estimated date and time of end of trip. Send the date in the format “YYYY-MM-DD HH:MM”.
cdcidibgeorigem	integer	Yes	IBGE code of the city of origin. This code is returned by the sgrListaCidades method.
cdcidibgedestino	integer	Yes	IBGE code of the destination city. This code is returned by the sgrListCities method.
cdrotaopentech	integer	Yes	Route code in Opentech, returned by the sgrListRoutes method.
cdrouteclient	string	No	Route code in the client. This code must be filled in when the cdrotaopentech field is not entered. Send '' (blank) when there is no information. The use of this field implies the registration of the customer's route codes in Opentech (The ratio must be 1 customer route code to 1 Opentech route code).
nrcnpjcpftransporter	string	No	CNPJ/CPF of the transporter. This field must be filled in if the cdtransporterclient field is not used. Send '' (blank) when not used.
cdtransporterclient	string	No	Transporter code on the client. This field must be filled in if the nrcnpjcpftransporter field is not used.
nrfonecelular	string	Yes	Cell phone number of the driver of the trip.
cdtipooperacao	integer	Yes	Operation type code, returned by the sgrListaTiposOperacao method.
nrcnpjcpfembarcador	string	No	CNPJ/CPF of the shipper. This field must be filled in if the cdembarcadorcliente field is not used. Send '' (blank) when not used.
cdembarcadorcliente	string	No	Code of the shipper in the client. This field must be filled in if the nrcnpjcpfembarcador field is not used.
nrcontrolecargo	string	No	Field for free use by the customer. Send '' (blank) when it doesn't exist.
nrfrota	string	No	Vehicle fleet number. Send '' (blank) when it doesn't exist.
distanciatotal	decimal	No	Total distance of the trip. Send 0 (zero) when it doesn't exist.
loadweight	decimal	No	Load weight. Send 0 (zero) when the information does not exist.
dscontroleviag(1 to 10)	string	No	Trip controls. Send “” (blank) when it doesn't exist.
products	array	Yes	List of products in the Shipment Authorization. To use this parameter, you must create an array of type sgrProduct. This array will be the summary of the transported cargo. It is not allowed to repeat a product code in this list.
documents	array	Yes	List of Shipment Authorization documents. To use this parameter, you must create an array of type sgrDocumentAE.
stops	array	No	List of Support Points, returned by the sgrListRoutePoints method. To use this parameter, you must create an array of type sgrTravelSupportPoint. For certain clients, this field may be required to be filled in. When no stops are entered, send an empty array.
sensortemperature	array	No	List of Temperature Sensors. To use this parameter, an array of type sgrSensorTemperature must be created. When no temperature parameters are entered, send an empty array.
nrdddfonecellular	string	Yes	DDD of driver's phone
dsnomerespviag	string	No	Name of the person responsible for the trip. Send '' (blank) when it doesn't exist.
dsfone1respviag	string	No*	Phone number of the person responsible for the trip. * Only required if there are no phone numbers registered on the [Customer Contact] screen for the Operational contact type.
dsfone2respviag	string	No	Additional phone number of the person responsible for the trip.
baits	list	No*	List of baits. To use this parameter, an array of type sgrIsca must be created. When no bait parameters are entered, an empty array must be sent. * Only required if the bait requirement is checked in the customer's GR rule configuration.

Observation: To make it easier to understand the secondary methods, which must be called to return the codes required in the parameters listed above, an analogy between the secondary methods and the registration screen in Clipas NET will be presented below. It should be noted that, as they are different systems, the Web Service and Clipas NET do not necessarily have to contain the same fields.

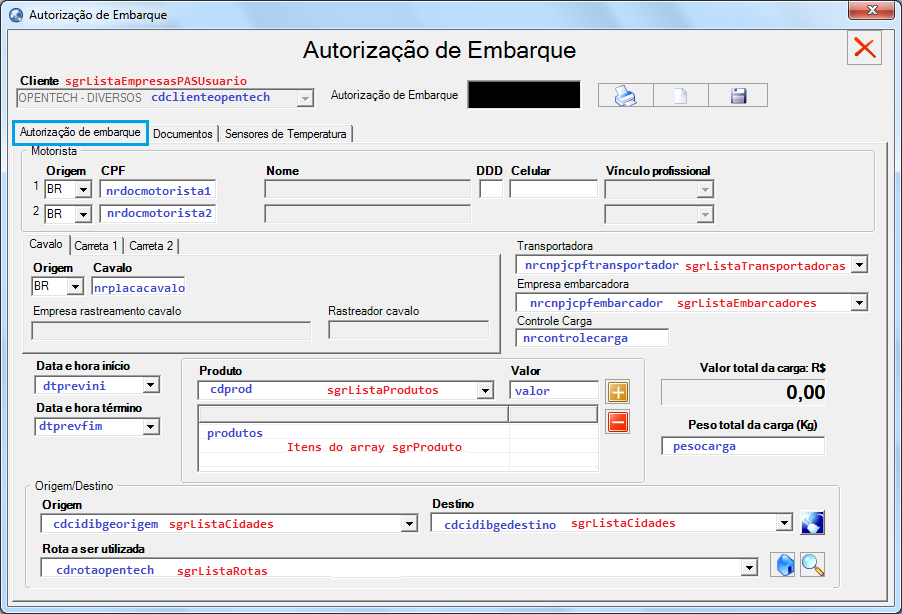

Figure 1: AE registration screen in Clipas NET, Shipping authorization tab. In blue, the names of the parameters have been written. In red are the secondary methods.

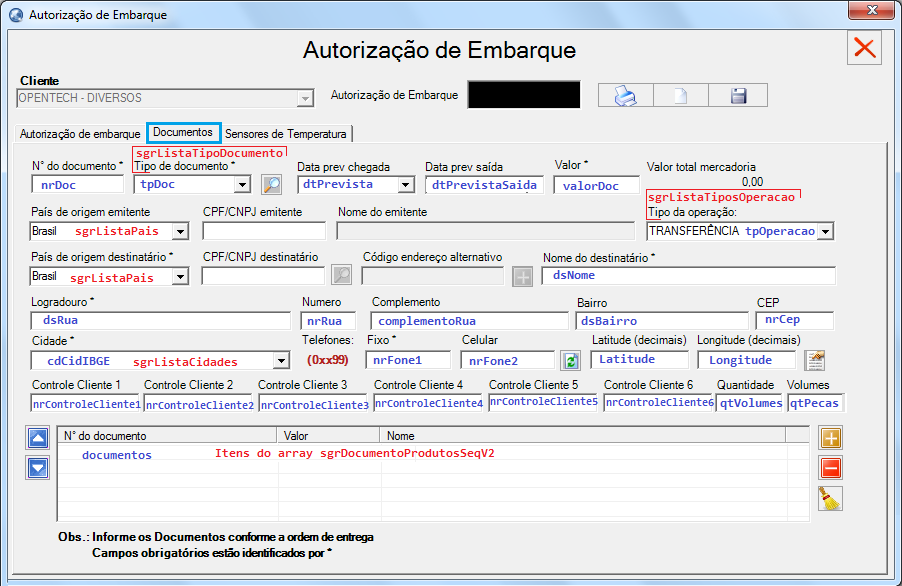

Figure 2: AE registration screen in Clipas NET, Documents tab.

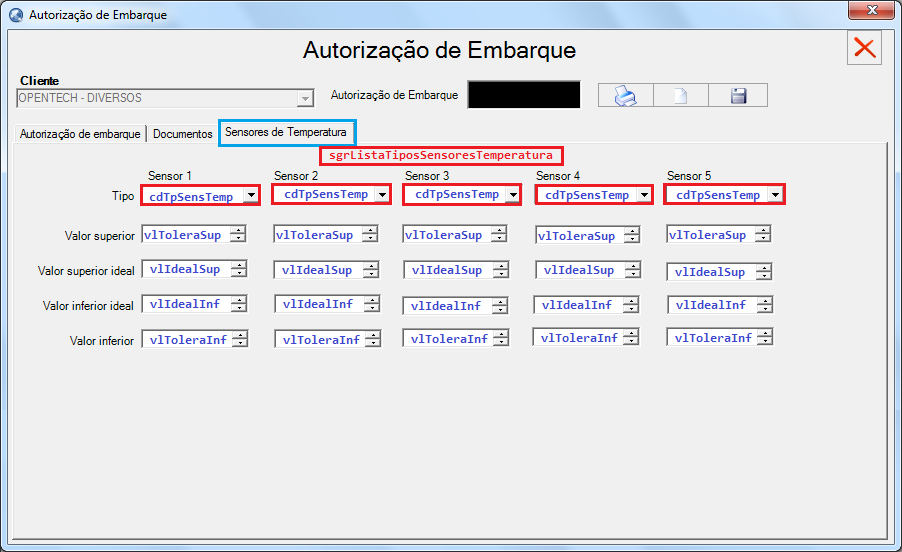

Figure 1: AE cadastre fabric not Clipas NET, aba Temperature Sensors.

METHOD RETURN:

ReturnDataset: If the parameters are valid, the Shipment Authorization is created and the dataset is displayed:

Field	Type	Description
CDVIAG	integer	Number of the AE created in the execution of the method

ReturnDescription: If there is an error in the execution of the method, the property will be displayed:

Error	Description
Invalid Start/End Forecast Date	The format of the date entered for the start and/or end forecast is invalid. It is necessary to fill in the format “YYYY-MM-DDhh:mm”.
It was not possible to generate the Shipment Authorization.	The errors that made it impossible to register are listed in the dataset, and can be seen in Table 1.

| Boarding Authorization already created! There is already a boarding authorization with the data entered.

The following method is more complete and can be used when traveling through MERCOSUL. (sgrGerarAEv9)
